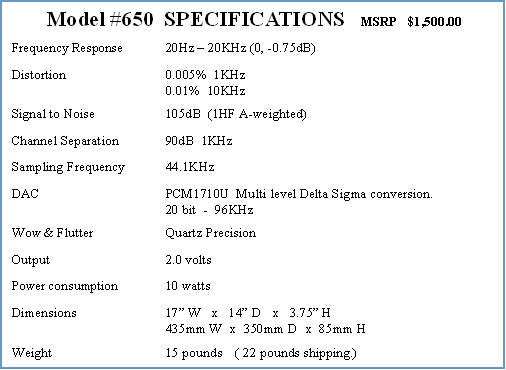

Model 650 Solid State CD Player
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
 |
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
 |
 |
|
|
|
|
FEATURES: Full Function Remote with batteries. Single CD front loading tray. 32 track memory. Repeat disc or repeat single track. Four different time displays. Will read CDR and DTS discs. Random track play or 10 second track introductions. Gold plated RCA analog output. Gold plated RCA digital output. Optical digital output. 6 fully regulated power rails. 120 volt or 220 volt operation. Ultra low noise toroidal transformer. Acrylic-Granite faceplate available in six stock colors.
Here it is, the long awaited Granite Audio CD Player. Notice how this sleek unit matches the Granite Audio tradition of minimalist controls and hardware. In fact, it doesn't have any front panel controls to clutter it's stealth appearance. All functions are performed by the remote control.
|
|
|
|
|
 |
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
 |
 |
|
|
|
|
BURR-BROWN DIGITAL-TO-ANALOG CONVERTER PCM1710U Stereo Audio
20-bit INPUT RESOLUTION
PCM1710 is capable of accepting either 16-bit or 20-bit input data. Some improvements in dynamic performance can be realized by using 20-bit data. When 20 bits are used, dynamic performance is improved by approximately 2dB. Refer to "Typical Performance Curves" for a comparison of 16-bit and 20-bit data. Internally, the PCM1710's digital filter uses only 20-bit data. If the input data is 16-bit, the filter adds four zeros to complete the 20-bit input word.
ADDITIONAL FEATURES >COMPLETE STEREO DAC: 8X Oversampling Digital Filter Multi-Level Delta-Sigma DAC Analog Low Pass Filter Output Amplifier >HIGH PERFORMANCE: -92dB THD+N 98dB Dynamic Range 110dB SNR >ACCEPTS 16 OR 20 BITS INPUT DATA >SYSTEM CLOCK: 256fs or 384fs >SINGLE +5V POWER SUPPLY >ON-CHIP DIGITAL FILTER: Soft Mute and Attenuator Digital De-emphasis Double-Speed Dubbing Mode >SMALL 28-PIN SOIC PACKAGE
DESCRIPTION
The PCM1710 is a complete stereo audio digital-to-analog converter, including digital interpolation filter, delta-sigma DAC, and analog voltage output. PCM1710 can accept either 16-bit normal or 20-Bit normal input data (MSB first, right justified), or 16-bit IIS data (32-bits per word, continuous clock). The digital filter performs an 8X interpolation function, as well as special functions such as soft mute, digital attenuation, de-emphasis and double-speed dubbing. Performance of the digital feature is excellent, featuring -62dB stop band attenuation and ±0.008dB ripple in the pass band. PCM1710 is suitable for a wide variety of consumer applications where good performance is required.
Click here to view the complete engineering specifications and performance curves of the PCM1710U in a 138kb PDF file.
|
|
|
|
|
 |
 |
|
|
|
|
|
|
|
|
|
|
|
Click on photo to enlarge view of back.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
